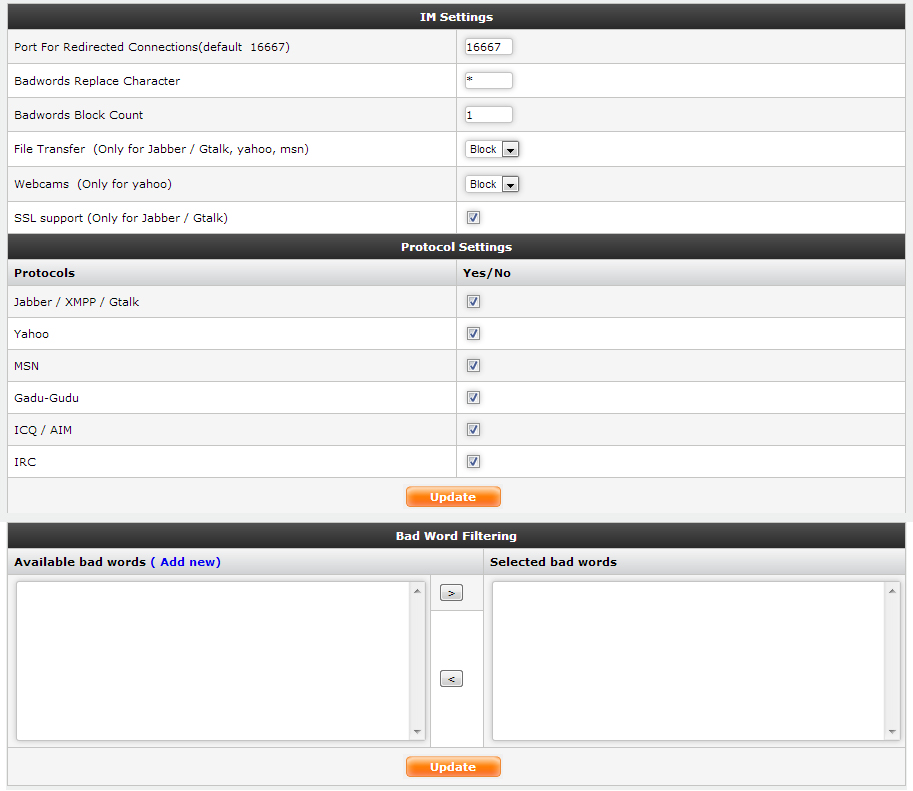

IM Configuration

Always Start/Restart the IM Service whenever you update any changes made in the IM Configuration, by clicking the start button in the Start IM Service for the changes to take effect.

● Port For Redirected Connections (default 16667): IM clients communication ports are intercepted to port 16667 for DLP engine to scrutinize data.

● Badwords Replace Character: Bad words will be replaced with the character, inserted in the text box. Default is an asterisk.

● Badwords Block Count: If a message contains more than this many bad words then the message will be completely blocked & not just replaced.

● File Transfer (Only for Jabber / Gtalk, yahoo, msn): Control on File Transfer through IM, above mentioned IM clients supported.

● Webcams (Only for yahoo): Block Video chats through GajShield DLP.

● SSL support (Only for Jabber / Gtalk): Record chat on encrypted protocol.

● Protocol Settings: Mentioned IM protocols are scanned by GajShield DLP engine.

⇒ Jabber / XMPP / Gtalk

⇒ Yahoo

⇒ MSN

⇒ Gadu-Gudu

⇒ ICQ / AIM

⇒ IRC

● Bad Word Filtering: There are bad word database by default on GajShield firewall, bad words can be manually entered in the firewall, by clicking on (Add new) next to Available bad words & after adding the bad word move it to Selected bad words column.
