Modify Interfaces

GajShield supports 3 types of network modes Standard, PPPoE Connection & DHCP.

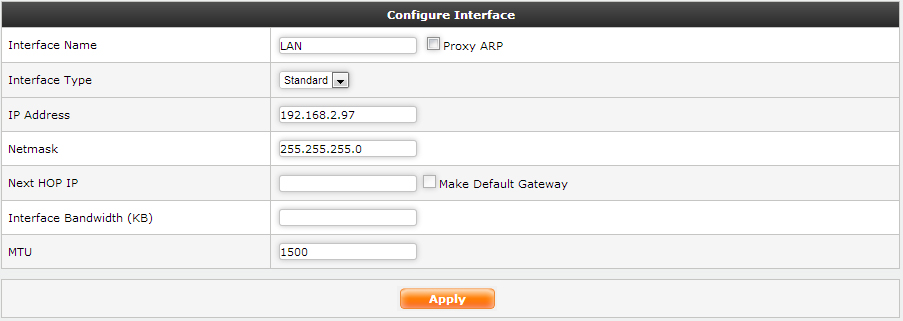

Standard Mode

● IP Address & Netmask enter IP details provided by your ISP.

● Next Hop IP is ISP Gateway or router IP.

● MTU (Maximum Transmission Unit) Insert maximum packet size, in bytes, that can be sent through the interface.

We recommend that you use the default, 1500 bytes, unless your network equipment requires a different packet size.

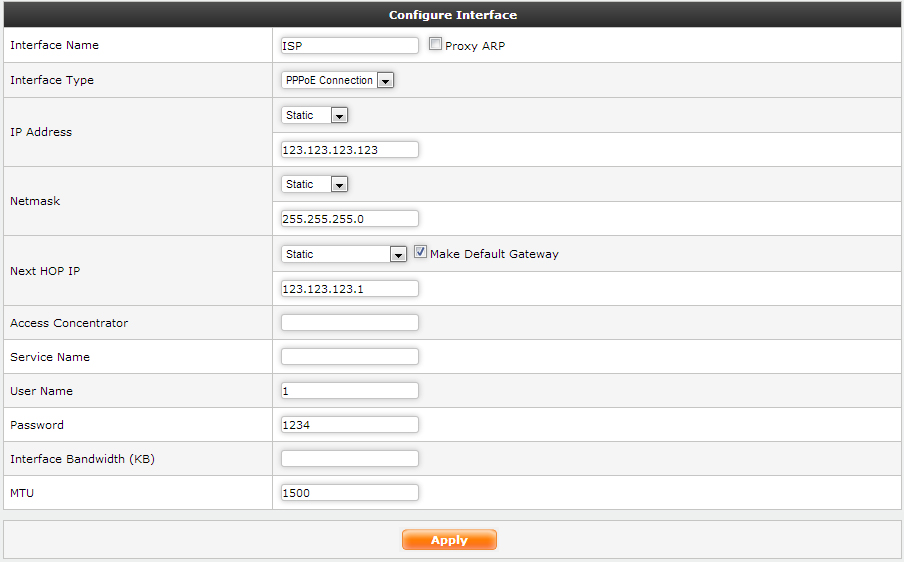

PPPoE Mode

● IP Address & Netmask select (Static / Dynamic) depending on your ISP settings.

● Next Hop IP select (Static / Assigned by Remote) depending upon your ISP settings.

● Access Concentrator the PPPoE server name provided by the ISP.

● Service Name enter ISP name or details provided by service provider.

● Username / Password Insert username & password provided by ISP for PPPoE authentication.

Leave it empty if ISP does not provide a server name.

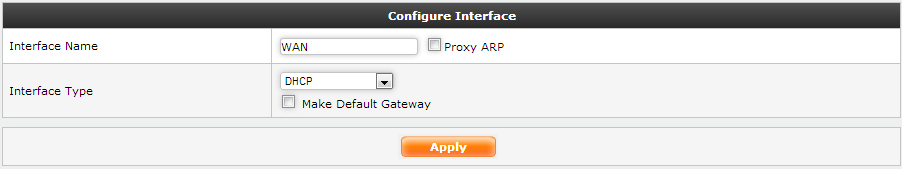

DHCP Mode

Choose DHCP, if your ISP uses DHCP server to provide WAN IP address.

DHCP Mode
