MAC Binding

With MAC Binding feature, one can enforce a client machine to work from a particular ip address and mac address, that means you can bind an ip address with a mac address such that the requests coming from a machine that has the ip address and mac address which are bounded to each other, only that requests will be served, others will be dropped.

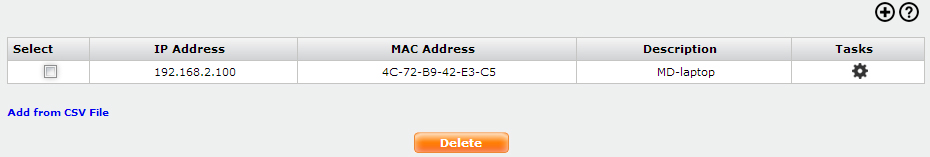

Here you can:

● view the ip addresses which are already bounded with mac addresses,

● add new ip/mac binding,

● edit an existing ip/mac binding,

● delete an existing ip/mac binding.

MAC Binding

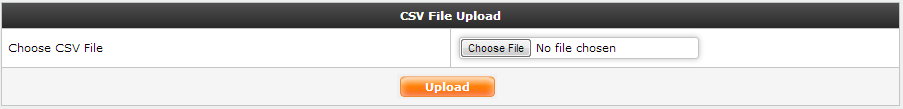

Here you can add MAC Bind users from a csv file.


The format of csv file is as follows:

ip-address-1,mac-address-1,description-1

ip-address-2,mac-address-2,description-2

ip-address-3,mac-address-3,description-3

.

.

.

.

ip-address-n,mac-address-n,description-n


Add CSV File



           Once your changes are done, you need to run "Install Policies" to reflect the changes.



● To add MAC Binding click on button.


● To modify MAC Binding click on button.


● To delete MAC Binding click on DELETE button.
