Routing Table



Routing Table

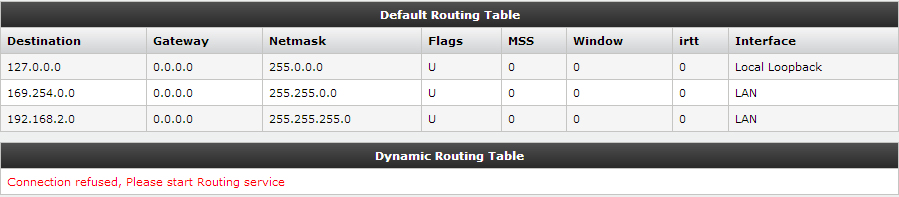

This tab views Default Routing Table and Dynamic Routing Table.


Default Routing Table

Destination: Destination Host/Network.

Gateway: Selected Gateway for Destination Host/Network.

Netmask: Netmask of Destination Host/Network.

Flags: Possible flags includes:

  U (route is up).

  H (target is a host).

  G (use gateway).

  R (reinstate route for dynamic routing).

  D (dynamically installed by daemon or redirect).

  M (modified from routing daemon or redirect).

  A (installed by addrconf).

  C (cache entry).

  ! (reject route).

MSS: Maximum Segment Size. The MSS value is calculated based on the formula MSS = MTU - 40 bytes.

Window: TCP window size.

irtt: Initial Round Trip Time (in milliseconds).

Interface: Name for Interface.


Dynamic Routing Table

Route Type: Displays Route Type.

Destination: Destination Host/Network.

Distance/Metric: Value of Distance and of Metric.

Via: IP of host via network is connected.

Interface: Name for Interface.

Time Elapsed: Time since route is selected.


            Dynamic Routing Table is available if either of RIP or OSPF is configured and is running.
