Add Bandwidth

Add Bandwidth

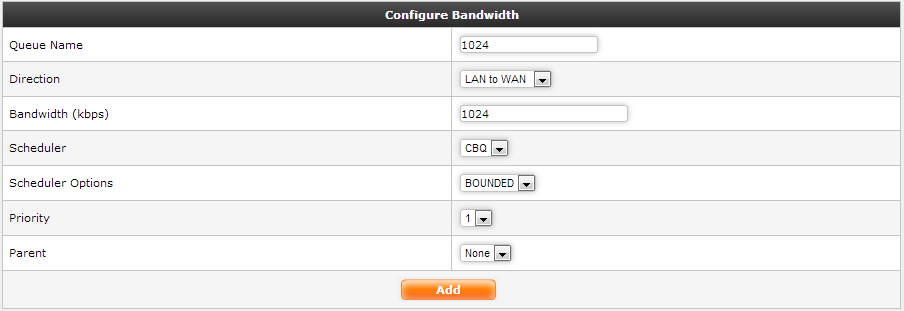

This screen allows to configure the Bandwidth Policy that would be used in Firewall Rules and Bandwidth Policy.

Add Bandwidth

Queue Name : define a name for the Queue.

Direction : the direction of network traffic that should be considered for bandwidth management.

Bandwidth : used to specify a custom speed to be assigned.

Scheduler : select CBQ (Class Based Queue) as the Scheduler.

Scheduler Option : allows to define option of Bounded i.e not allow more bandwidth than what is assigned, or Borrow (borrow bandwidth) incase other services are not using it.

Priority : assign the priority to be assigned to the Bandwidth Queue. The Queue having higher priority would be processed first.

Parent : if you want to create sub-queue then create a queue and assign a parent for that queue.
