Add SNMP Trap Settings

Management ›› SNMP ›› SNMP Trap Settings ››
Parent Previous Next

Add SNMP Trap Settings


In this section you can add the community names and the corresponding IPs on which the Traps would be configured by those communities. The static Traps configured currently are :


1. Authorization Failure Trap : Unauthorized SNMP Command Notifications


2. Cold Start Trap : SNMP Agent Start/Stop Notifications


3. Link Up/Down Trap : Ethernet Link Up/Down Notifications


4. Process Check Trap : Specific Process MIN/MAX Values and currently running Notifications

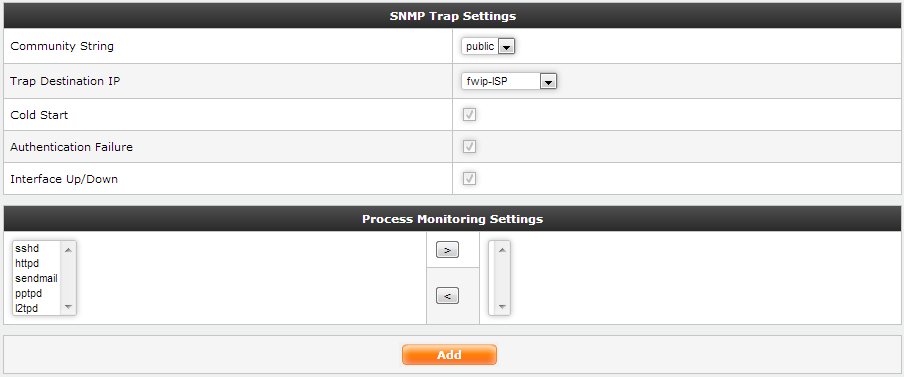

Add SNMP Trap Settings
